Lot 1564 Detail

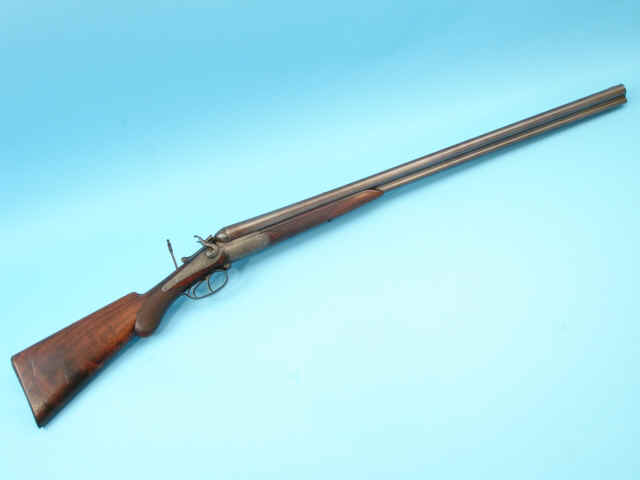

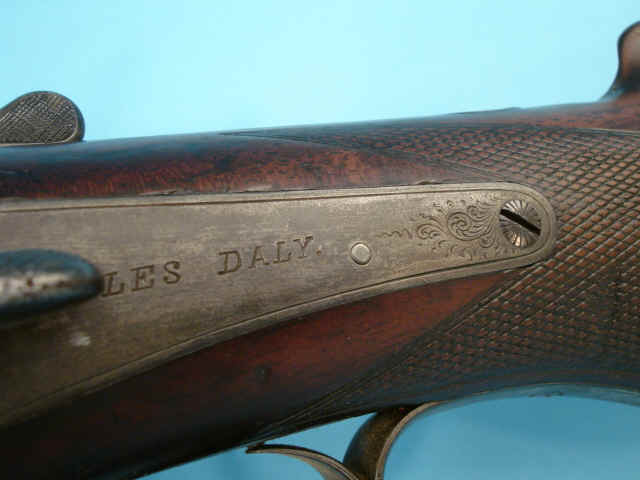

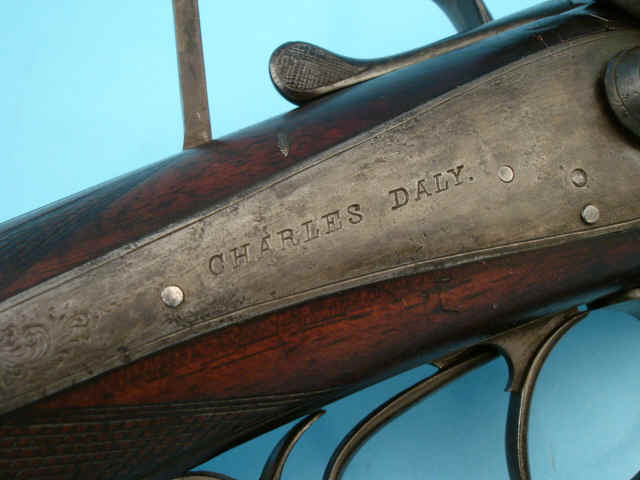

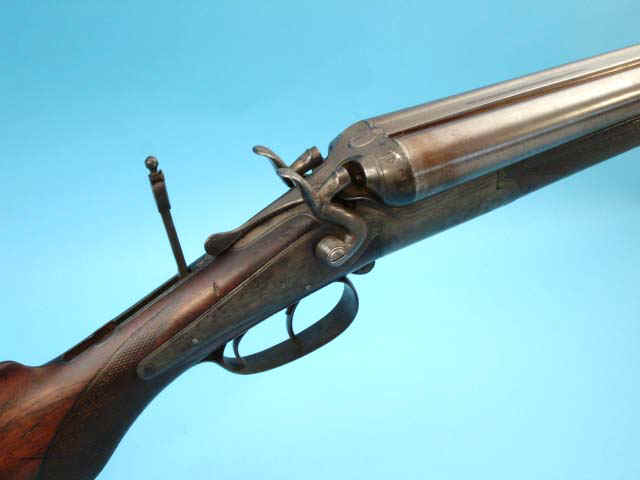

12 Gauge by Charles Daly Hammer Drilling by Sauer

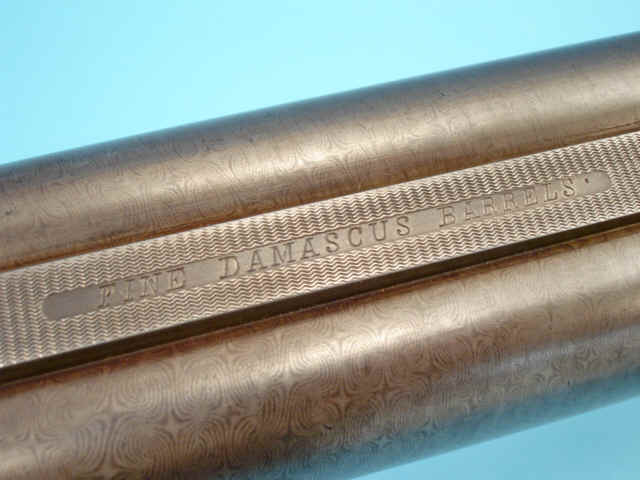

Serial no. 44220. 12 x 12 gauge by (possibly) 38-55. 30-inch Damascus barrels with

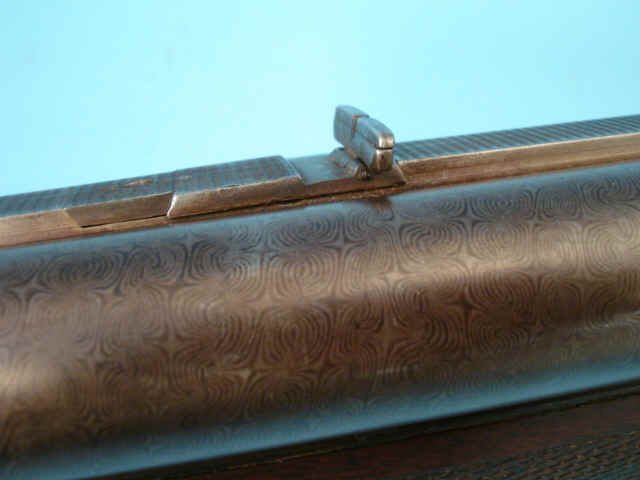

matted flat rib with doll's head extension. Manual flip-up rear sight. Border-engraved

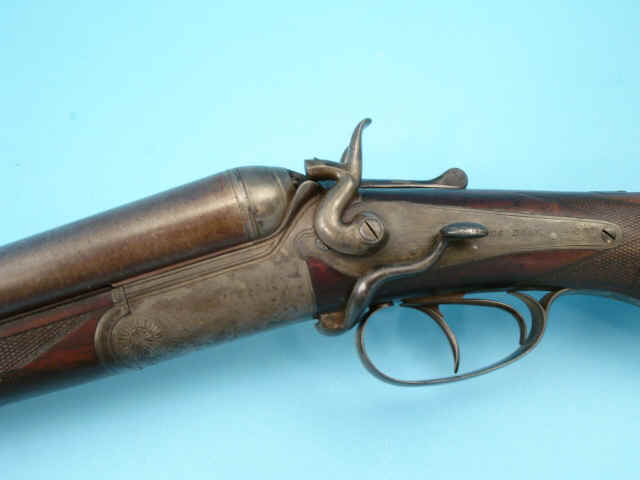

casehardened side-lever action. Back-action locks. Extractor. Top lever rifle barrel

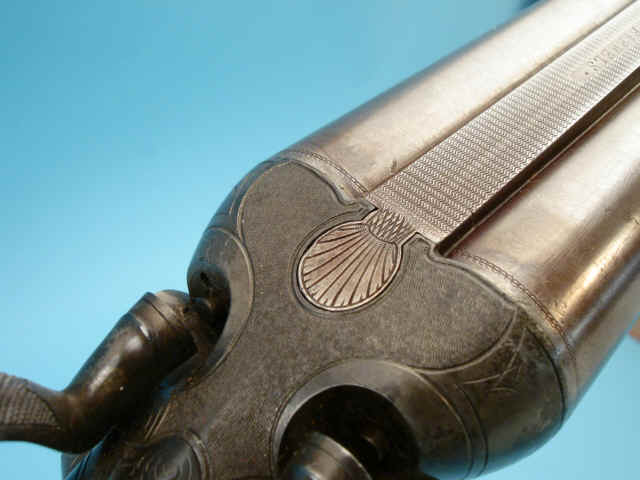

selector. Percussion fences. Flip-up tang sight inlet into tang. Finely checkered

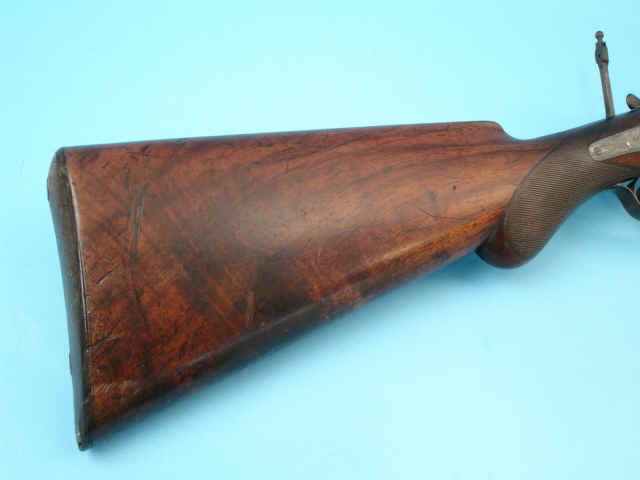

pistolgrip stock of figured walnut. Round knob. Horn buttplate. Finely checkered splinter
fore-end with Deeley-style release.
Condition: Fine, as partially redone. Barrels show 90 - 95%
re-browned finish with some slight dents. Bright shotgun barrels with some frosting. Right
barrel shows an area of fine pitting near breech. Rifle barrel shows well-defined rifling
with some fine pitting. Cleaned action shows a silver-gray finish with some older fine
pitting. Barrels/action shows some looseness. Right lock shows a hair-trigger. Horn
buttplate shows losses and wear. Stock shows nicks, scratches and scrapes. Fore-end shows
handling marks. Checkering is partially filled.
Note: Note: This gun has 12 gauge chambers and 10 gauge diameter barrels. It may have
been designed for thin wall brass cases. However, gun should be proved prior to use.
Data: Barrel Dimensions: Bore: 0.775/0.775-inches. Chokes: 0.012/0.044-inches (Improved
Cylinder/Full). Chambers: 2 3/4 -inches. Proof: German Black Powder Mark. Minimum Wall
Thickness: 0.024 -inches. Stock Dimensions: Pull: 13 1/2-inches. Drop at comb: 1
3/4-inches. Drop at heel: 3-inches. Weight: 8 pounds, 2 ounces.
Estimate: $1200 - $1500
